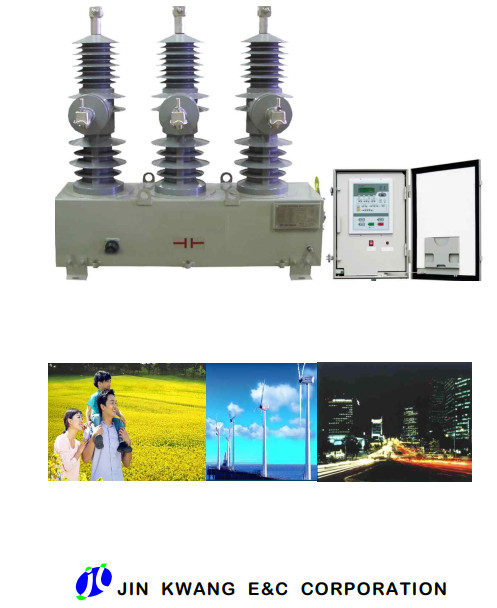

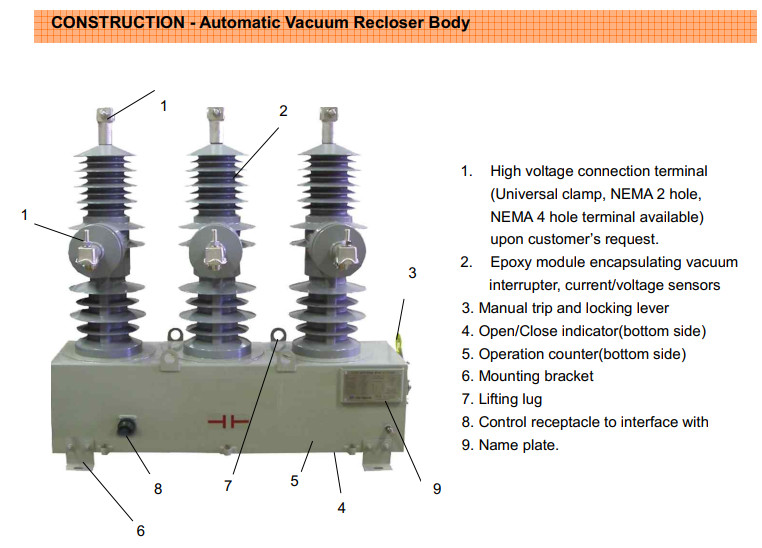

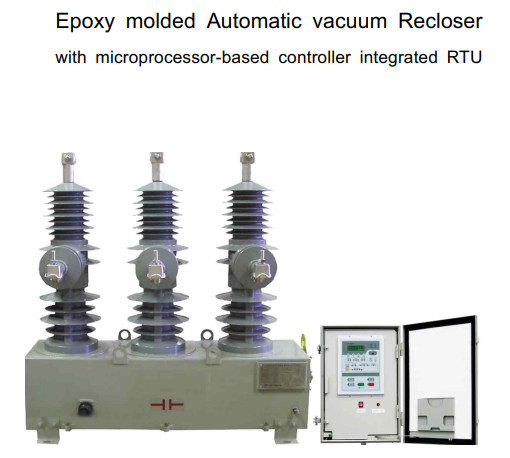

JK-MREC Recloser = Máy cắt tự động đóng lặp lại hãng Jin Kwang / Hàn Quốc
1, Maximum System Voltage = 27kV
2, Rated Current = 630A
3, Rated Frequency = 50/60hZ
4, Mechanical Operation(Min.) = 10.000 lần
5, Rated symmetrical interrupting current = 12.5/16kA
6, Short Time Withstand Current(1sec) = 12.5/16kA
7, Making Current(peak) = 32.5/40kA
8, Line Charging current = 5A
9, Cable Charging current = 25A
10, Net Weight(Switch Body/ Control Cabinet) = 190/50kg
